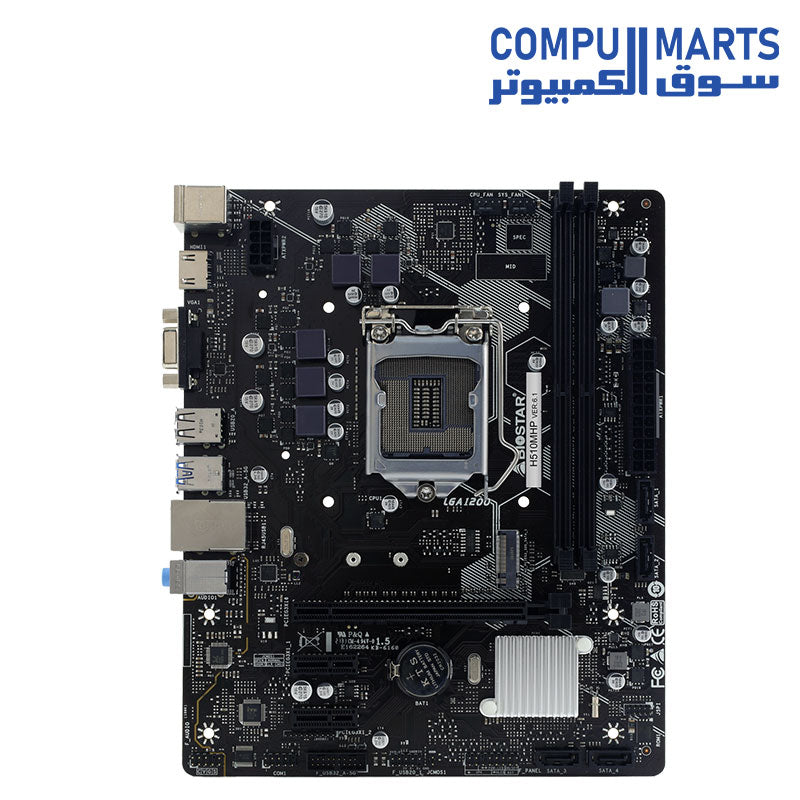

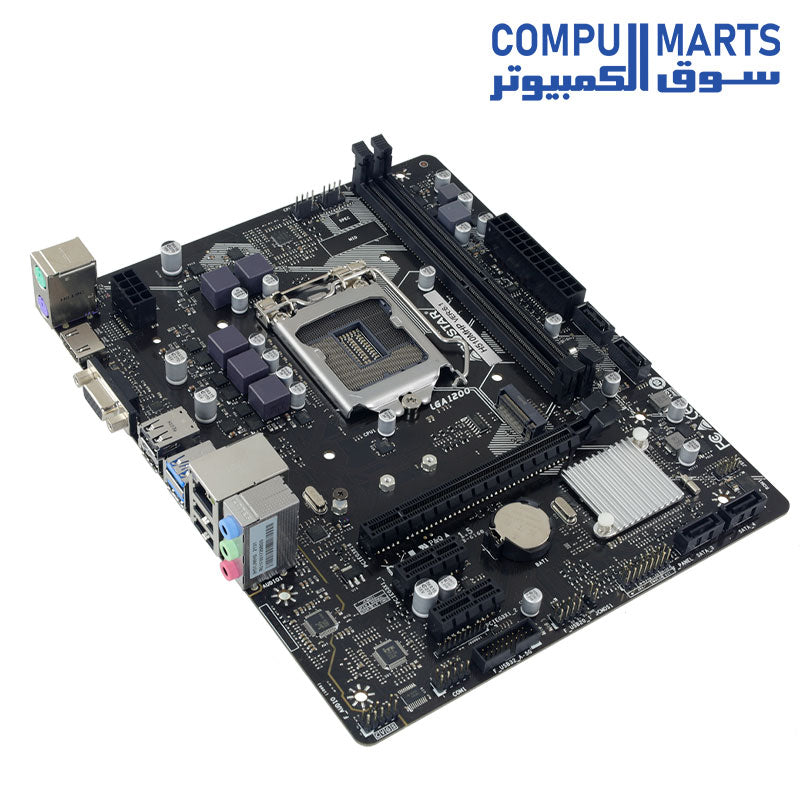

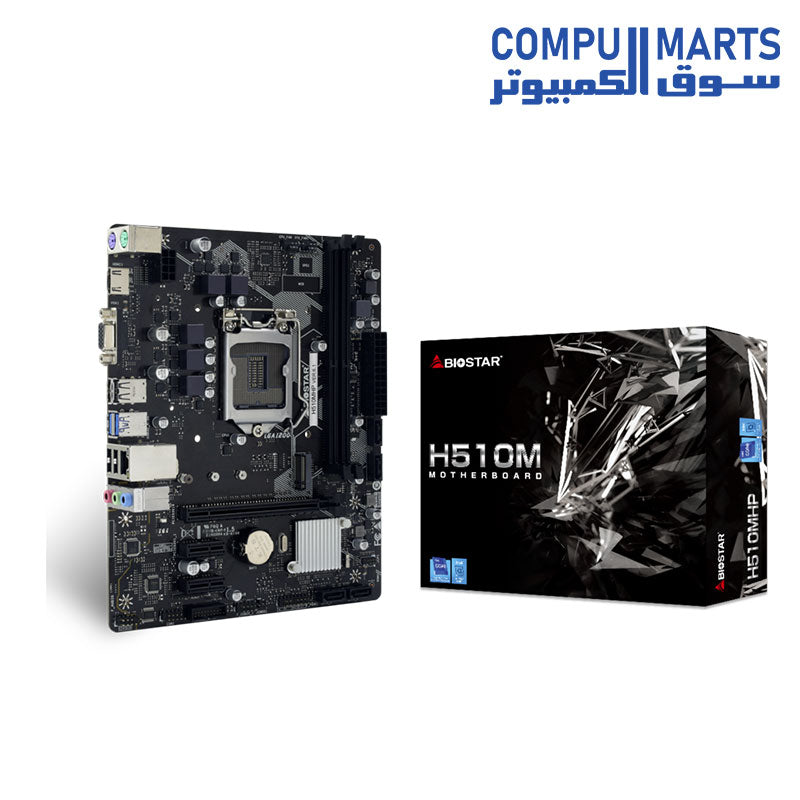

Biostar H510MHP Intel H510 LGA1200 DDR4-3200 M.2 Micro ATX Motherboard

Chipset

Intel H510

CPU SUPPORT

Socket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processors

 Please refer to www.biostar.com.tw for CPU support list.

MEMORY

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

INTEGRATED VIDEO

Supports DX12

Supports HDCP

STORAGE

4 x SATA III Connector (6Gb/s)

1 x M.2 (M Key) Socket:

Supports M.2 Type 2242/ 2260/ 2280 SSD module.

Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD

* When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled.

* Specifications vary by CPU types

LAN

Intel I219V

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

Realtek ALC887

7.1 Channels, High Definition Audio

USB

4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)

6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)

EXPANSION SLOT

2 x PCIe 3.0 x1 Slot

1 x PCle 3.0/4.0 x16 Slot

The PCle 4.0 only depends on Rocket Lake CPUs.

 Specifications vary by CPU types

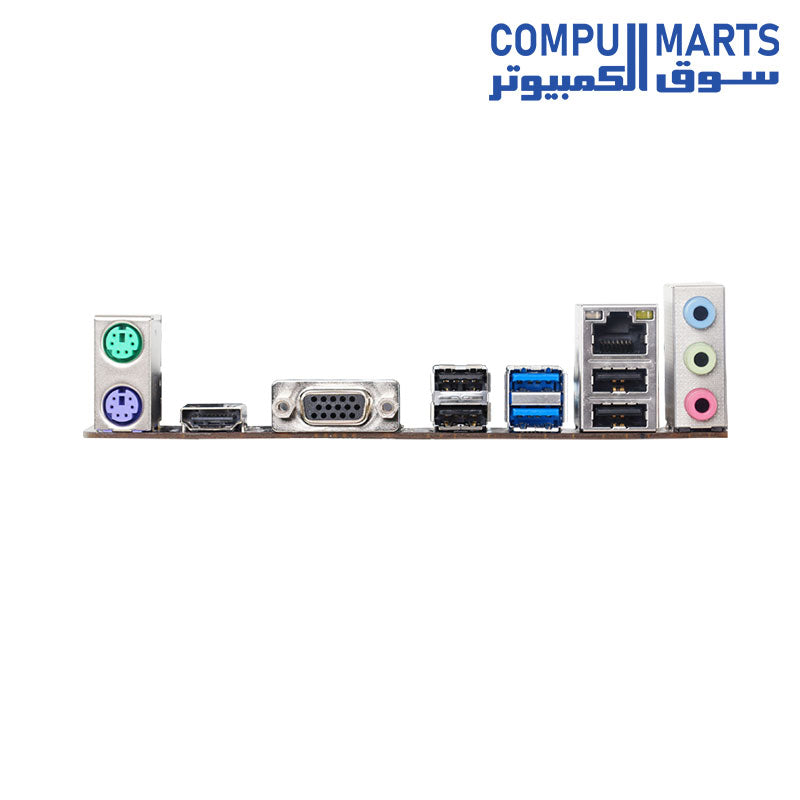

REAR I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x HDMI Port

1 x VGA Port

2 x USB 3.2 (Gen1) Ports

4 x USB 2.0 Ports

1 x LAN port

3 x Audio Jack

INTERNAL I/O

4 x SATA III Connectors (6Gb/s)

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Port Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )

OS SUPPORT

Supports Windows 10 (64bit) / 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide
