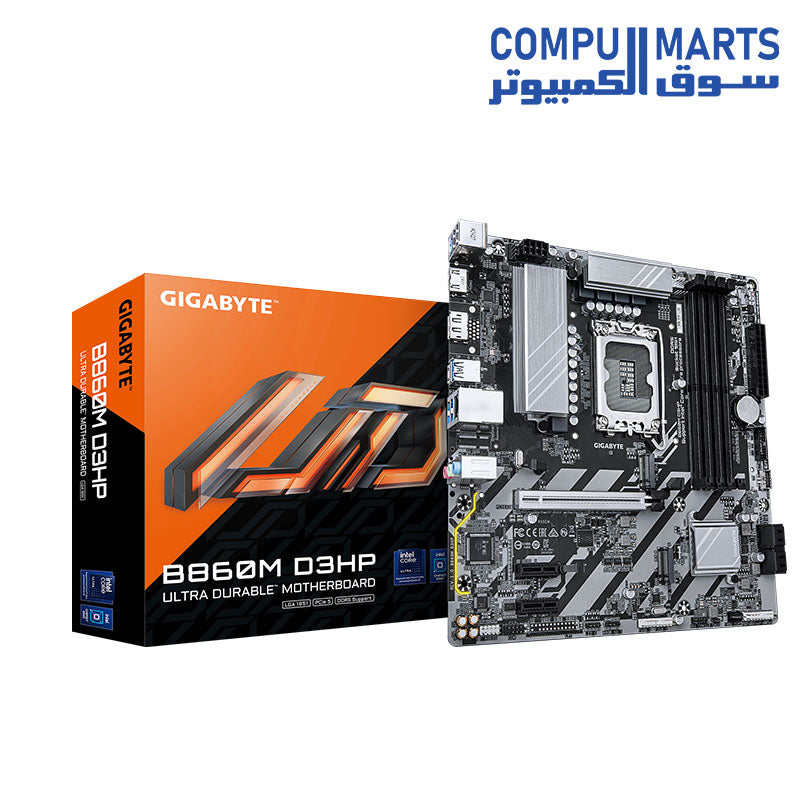

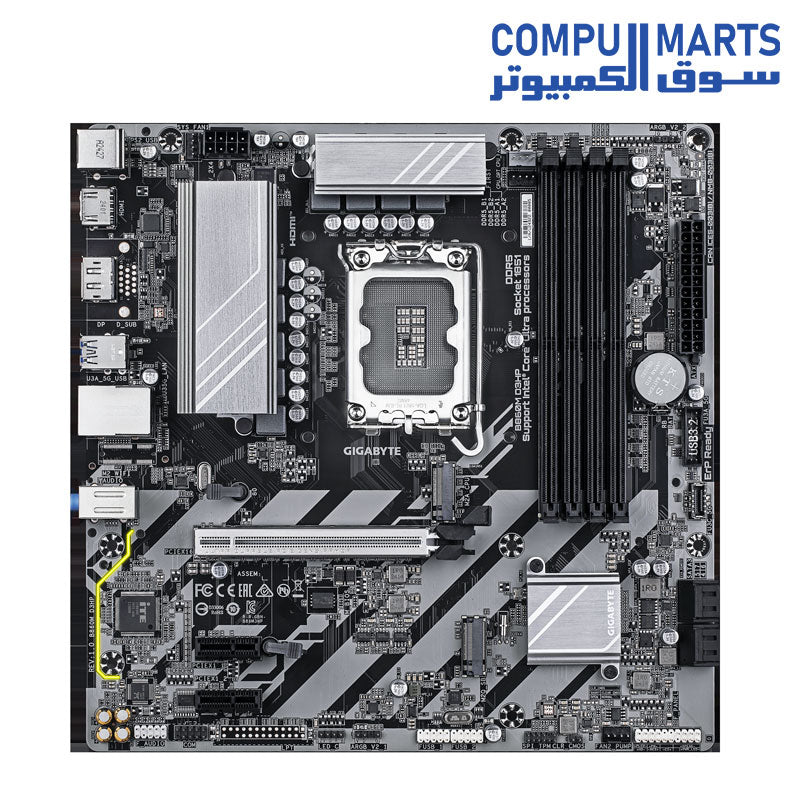

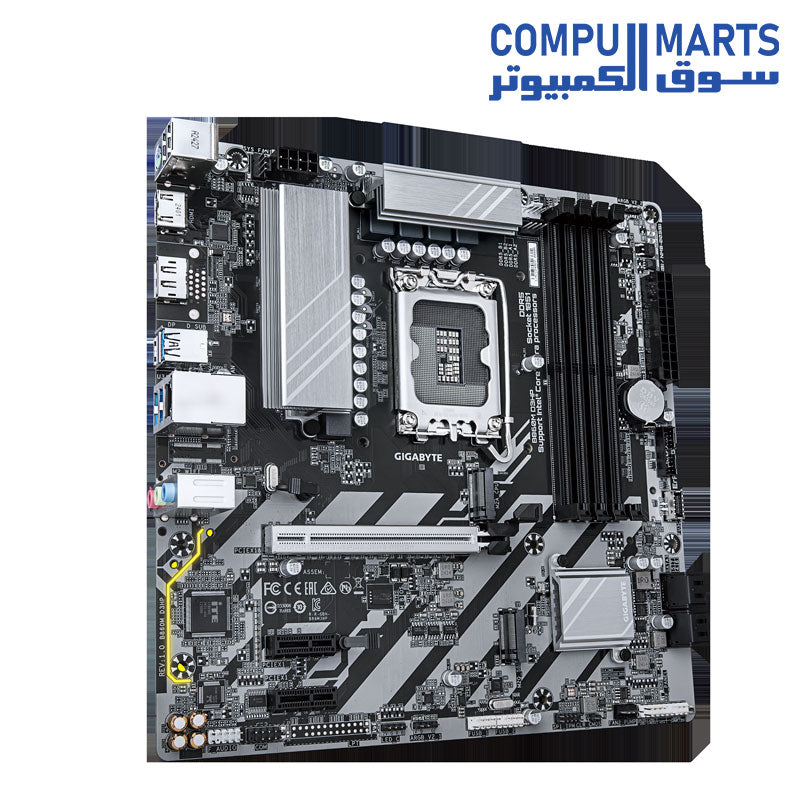

GIGABYTE B860M D3HP MOTHERBOARD

GIGABYTE B860M D3HP MOTHERBOARD

CPU

LGA1851 socket: Supports Intel Core Ultra Processors

L3 cache varies with CPU

Chipset

Intel B860 Express Chipset

Memory

Supports DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 5600 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)

Dual channel memory architecture

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Supports Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor - Intel HD Graphics

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3)

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (DisplayPort 2.1)

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

CPU

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

Chipset

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

Chipset

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support

USB

Chipset

1 x USB Type-C port with USB 3.2 Gen 1 support

5 x USB 3.2 Gen 1 ports (3 on the back panel, 2 via internal header)

3 x USB 2.0/1.1 ports on the back panel

Chipset + USB 2.0 Hub

4 x USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header

1 x serial port header

1 x Clear CMOS jumper

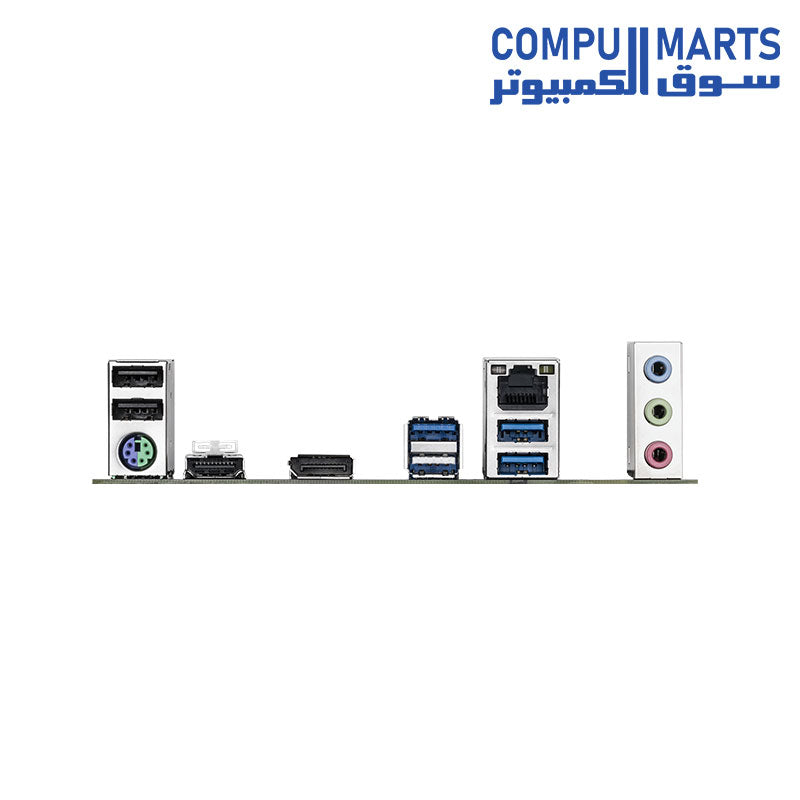

Back Panel Connectors

3 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

3 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor, 24.4cm x 24.4cm
