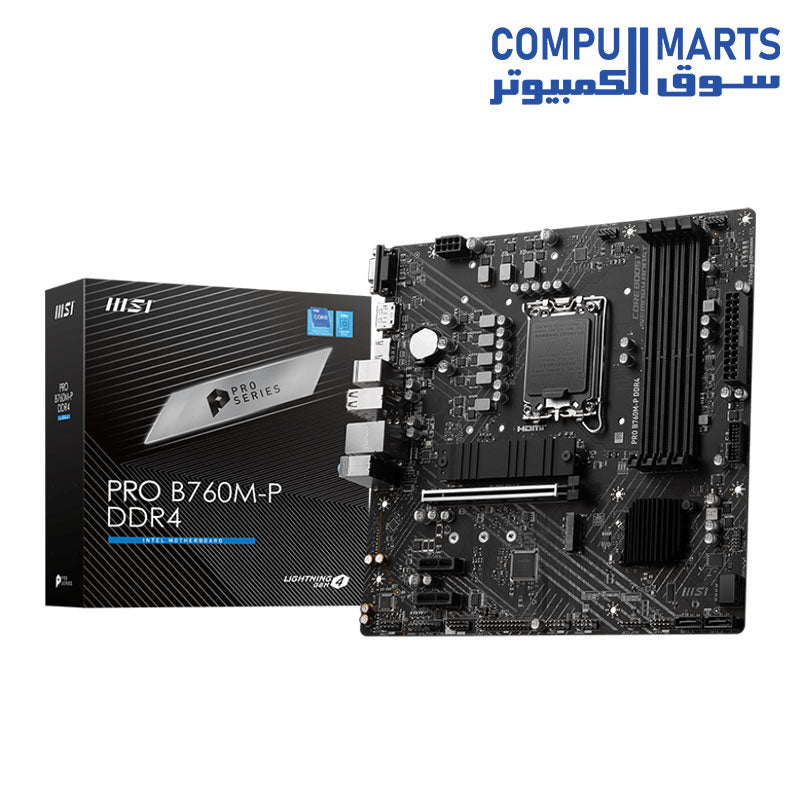

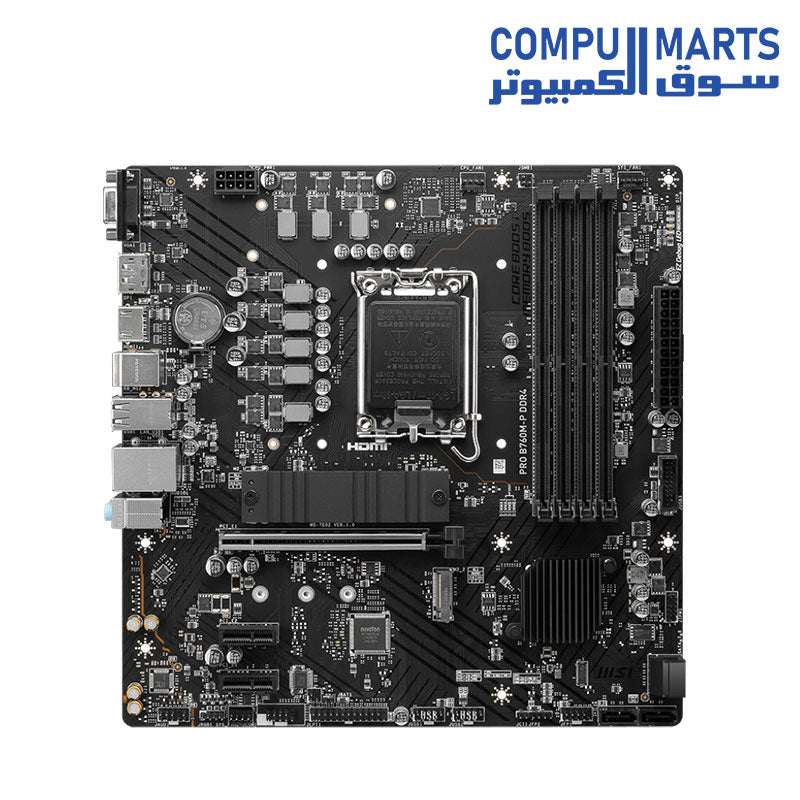

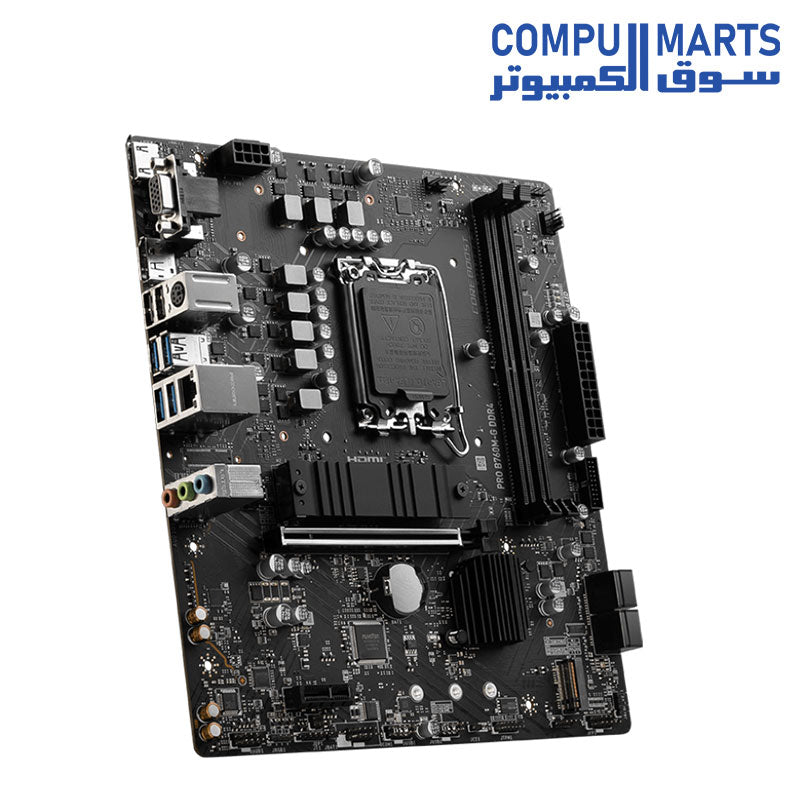

MSI PRO B760M-G DDR4 Motherboard

MSI
Motherboards
6,500.00 EGP
Hurry up! only 1 left
Terms & conditions

Shipping To All Egypt

50% off shipping on (Monitors - PC bundles -laptops)

Estimated to be delivered on average between 2 to 3 days

Shipping

We can ship to virtually any address in Egypt.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose.

Enjoy With Compumarts Warranty

Learn More.

عزيزى العميل

شركة سوق الكمبيوتر هى وسيط بينك وبين الوكيل ولسنا المصنعين يرجى قراءة الشروط التالية لسهولة تقديم أفضل خدمة لك : مدة الضمان 11 شهر من تاريخ الشراء ضد عيوب الصناعة وليس عطل Software . يلتزم المشتري بتوفير الفاتورة في حالة الخلاف علي تاريخ الشراء. مدة الصيانة 15 يوم قابلة للزيادة لا يحسب ضمنها أيام الخميس والجمعة والسبت والاجازات الرسمية والاعياد .

يسقط الضمان في الحالات الاتية: عدم الحرص في التعامل ودون حصر ( العيوب الناتجة عن الأجسام الحادة - أو الثني - أو الضغط - أو الإسقاط – الكسر او الشرخ ... إلخ ). عيوب ناتجة عن تعرض الجهاز لمّس كهربائي. إذا تم فتح المنتج أو التعديل فيه أو إصلاحه بواسطة أي شخص أخر خلاف الوكيل المعتمد ، أو إذا تم إصلاحه باستخدام قطع غيار غير مصرح بها، أو تعرض الرقم بالملصقات علي المنتج للإزالة أو لمحاولة الإزالة. إذا تعرض المنتج للرطوبة أو البلل، أو تعرض لظروف حرارية أو بيئية متفاوتة بدرجة شديدة أو لتغيرات سريعة في هذه الظروف، كما لا يسرى هذا الضمان إذا تعرض المنتج لعمليات التآكل والأكسدة ، أو انسكاب الأطعمة أو السوائل عليه ، أو تعرض للمنتجات الكيمائية . الأضرار الناتـجة من سوء الاستخدام (الإهمال – الحمل الزائد – عدم الإلتزام بتعليمات التشغيل الـموضحة فى كتالوج التشغيل الـمرفق مع الـمنتج - عدم الالتزام بتعليمات التخزين).

Dear customer

Compumarts is an intermediary between you and the Official Agents and we are not the manufacturers . Please read the following terms : Warranty lasts for 11 months starts from the purchase date against manufacturing defects, not software malfunction. The Customer is obligated to provide the invoice in the event of a dispute over the date of purchase. The maintenance period is 15 day-In some cases could be more- not including Thursdays, Fridays, Saturdays, and official holidays.

The warranty is voided in the following cases: Not being careful in handling (defects resulting from sharp objects, bending, pressure, dropping, fracture or crack ... etc.). Defects caused by electrical shock with the device. If the product has been repaired by unauthorized replacement parts, or the serial / label number has been removed or updated. If the product exposed to moisture or oxidation. The result of misuse (negligence - overloading - non-compliance with the operating instructions indicated in the operating catalog attached with the product - failure to link to the instructions).

Online Support

Online customer service and technical support

customers are viewing this product

MSI PRO B760M-G DDR4 Motherboard



  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)

  • Core Boost : With premium layout and digital power design to support more cores and provide better performance

  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

CHIPSET

INTEL B760

CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA 1700

MEMORY

2x DDR4, Maximum Memory Capacity 64GB

Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz

• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI

Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

EXPANSION SLOT

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

STORAGE

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek RTL8125B 2.5Gbps LAN

AUDIO

Realtek ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

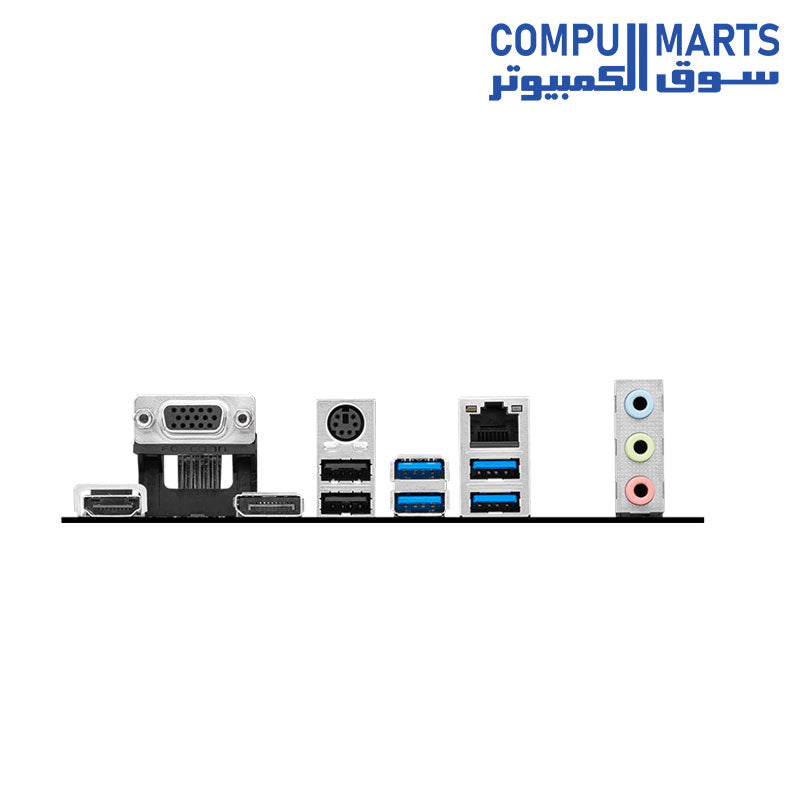

BACK PANEL PORTS

  1. HDMI

  2. VGA

  3. DisplayPort

  4. Keyboard / Mouse

  5. 2.5G LAN

  6. Audio Connectors

  7. USB 2.0

  8. USB 3.2 Gen 1 5Gbps (Type-A)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION

mATX

220mmx243.84mm

MSI PRO B760M-G DDR4 Motherboard
