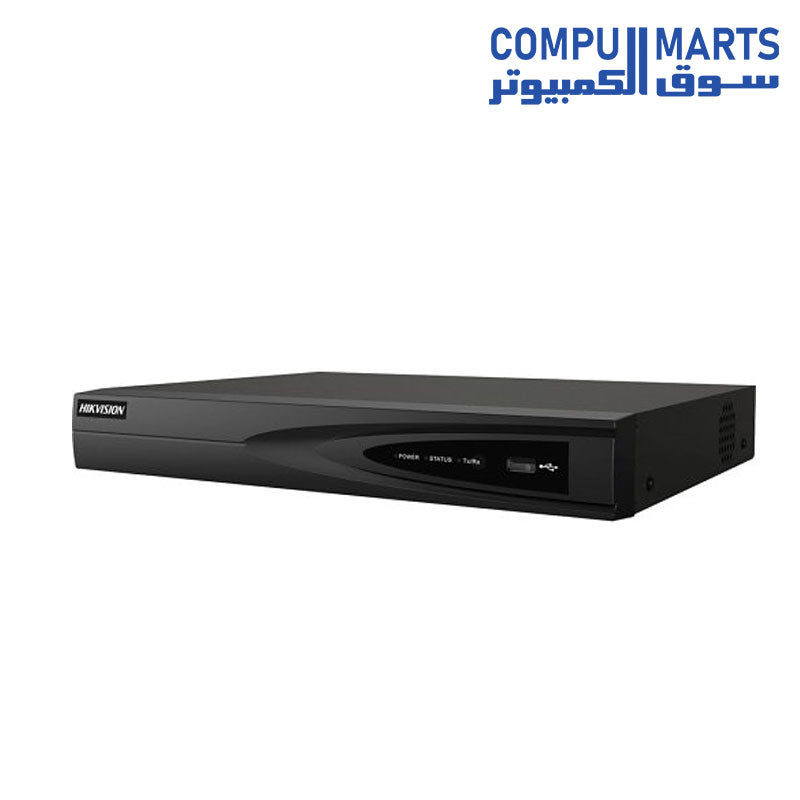

NVR Hikvision DS-7604NI-K1/4P Network Video Recorders Pro-Series

NVR Hikvision DS-7604NI-K1/4P Network Video Recorders Pro-Series

• Up to 4-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity

• Up to 40 Mbps incoming bandwidth

• Video And Audio

• IP Video Input4-ch

• Incoming Bandwidth40 Mbps

• Outgoing Bandwidth80 Mbps

• HDMI Output4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz

• VGA Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)

• Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264

• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

• Synchronous Playback4-ch

• Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Network

• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE

• Interface4-ch

• Power≤ 50 W

• StandardIEEE 802.3 af/at

• RAID

• RAID TypeNo

• Auxiliary Interface

• SATA1

• CapacityUp to 8TB capacity for each disk

• USB Interface2 × USB 2.0

• Alarm In/OutN/A (4/1 is optional)

• General

• Power Supply48 VDC, 1.35 A

• Consumption≤ 10 W (without enabling PoE)

• Working Temperature-10 to +55° C (14 to 131° F)

• Working Humidity10 to 90 %

• Chassis1U

• Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")

• ≤ 1 kg (2.2 lb)
