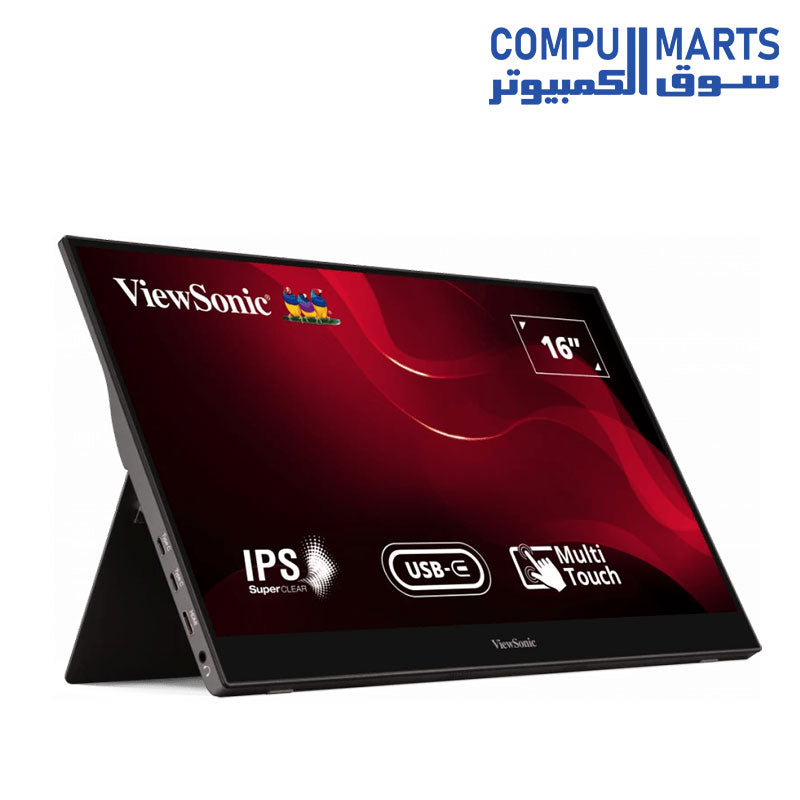

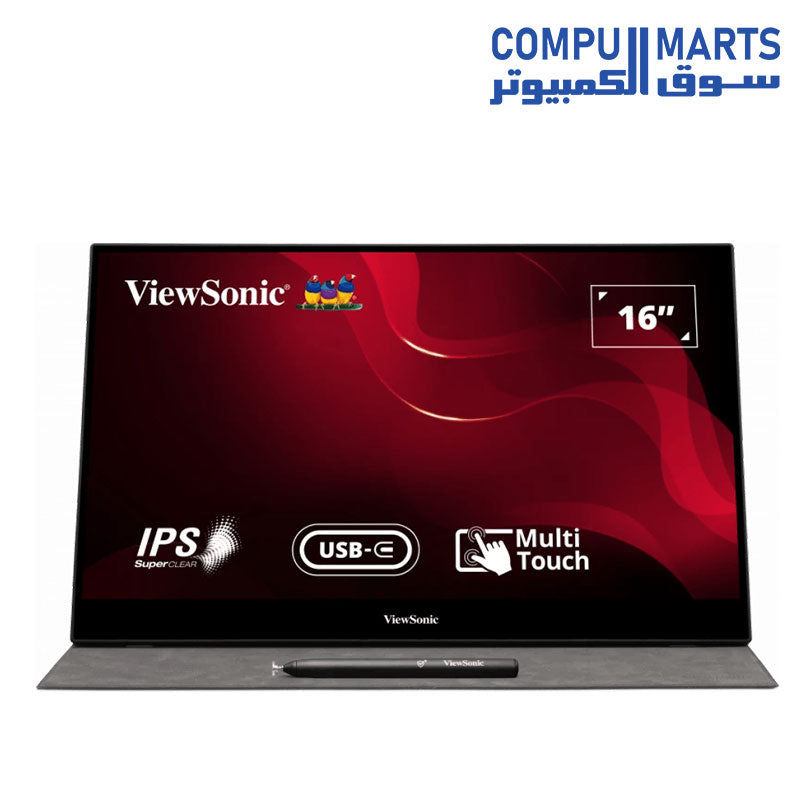

ViewSonic TD1655 16” Touch Portable Monitor

TD1655 16” Touch Portable Monitor

• Easily extend your content from laptops and mobile devices

• One-cable solution for audiovisual, power, and touch signal transmission

• Flexible display setup – work at any angle

• Compact size, light weight, and highly portable

• Sturdy and durable design

The ViewSonic TD1655 is a portable 16” Full HD monitor with 10-point multitouch capability designed for dual-screen productivity beyond the office. Extend your display from phone, tablet, or laptop to a larger screen for seamless multitasking, personalized one-on-one presentation, or relaxed entertainment. The two universal USB-C connectors provide a one-cable solution for multimedia transfer and power charging. Tailor your work setup to your preferences with adjustable viewing angles and the option for both landscape and portrait display layouts. With a detachable magnetic anti-slip cover, metal case, and foldable aluminum stand designed for convenient mobility, enhance your mobile workstation anywhere, anytime.

Take Productivity with You

Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the TD1655 portable monitor, perfect for multitasking and meetings on-the-go.

Effortless Portability

Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden.

Thin & Lightweight, 6.1 mm, 0.94 KG

Note:
1. Touch feedback control not applicable to iOS & iPadOS devices.
2.DOWNLOAD vTouch software to enable touch feedback on MacOS.
3. Ensure your mobile device's connectivity supports USB touch signal transmission for touch feedback control on our monitor.
4. Do not remove the plastic disc on the pen tip; it's crucial for touch accuracy functionality.

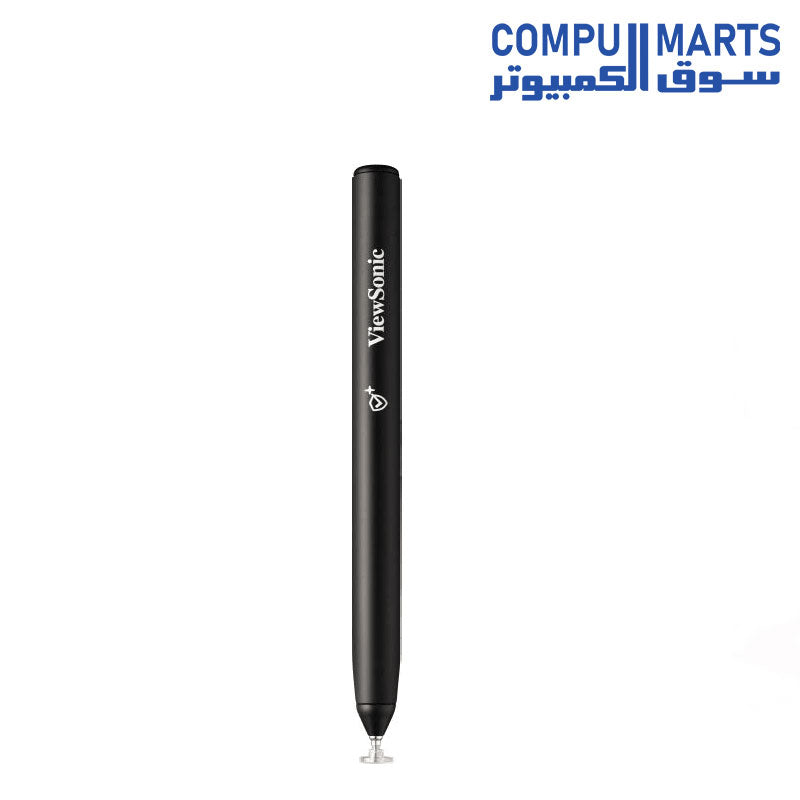

Touch Control with Fingers or Stylus

Hassle-free Connectivity

Dual USB-C ports for all your connectivity needs, enabling smooth audio, video, and touch data transfer, as well as bi-directional power charging through a single cable.

USB-C One Cable Solution

Flexible Display Setup

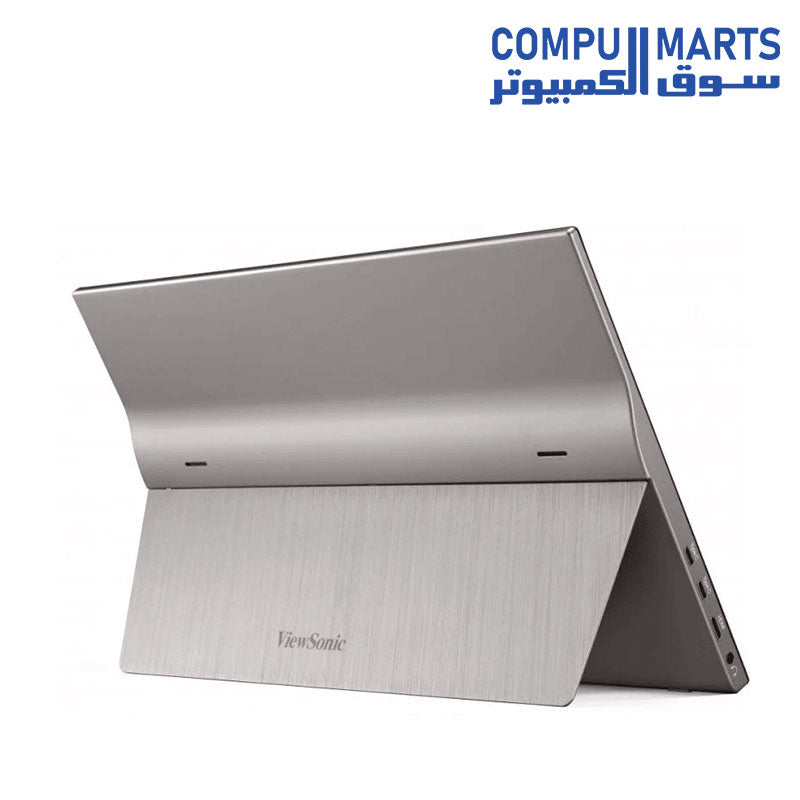

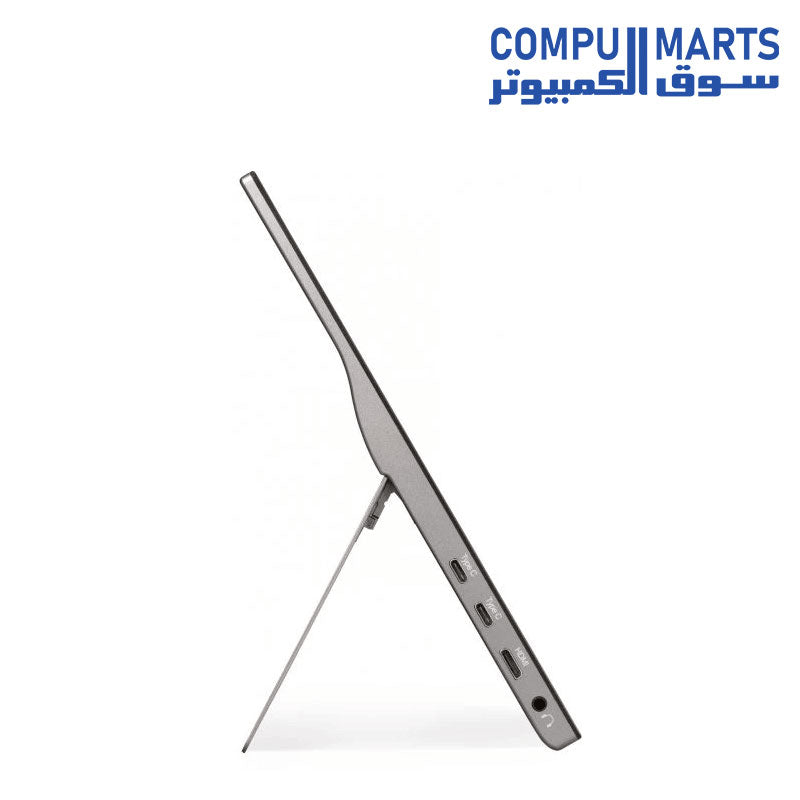

Work in your preferred setup – the built-in foldable aluminum stand with a durable hinge, tilts up to 60 degrees for easy adjustment of viewing angles.

Built-in Foldable Aluminum Stand with Durable Hinge

Expand your workspace to a second screen

Simply connect your laptop, smartphone or tablet to the monitor and experience a more productive work environment, easier web browsing and a more immersive viewing experience as you stream on the go.

Note:
1. Smart device must support Display Port 1.2 Alt Mode and Power Delivery via USB-C connection
2. Using an iPhone or iPad will require a Lightning to HDMI Adapter and HDMI to mini-HDMI cable (included) to connect to the monitor. It will also require an external power source such as an electrical outlet or power bank.

Audiovisual extension with laptops, tablets, and phones

Extra On-Carry Protection

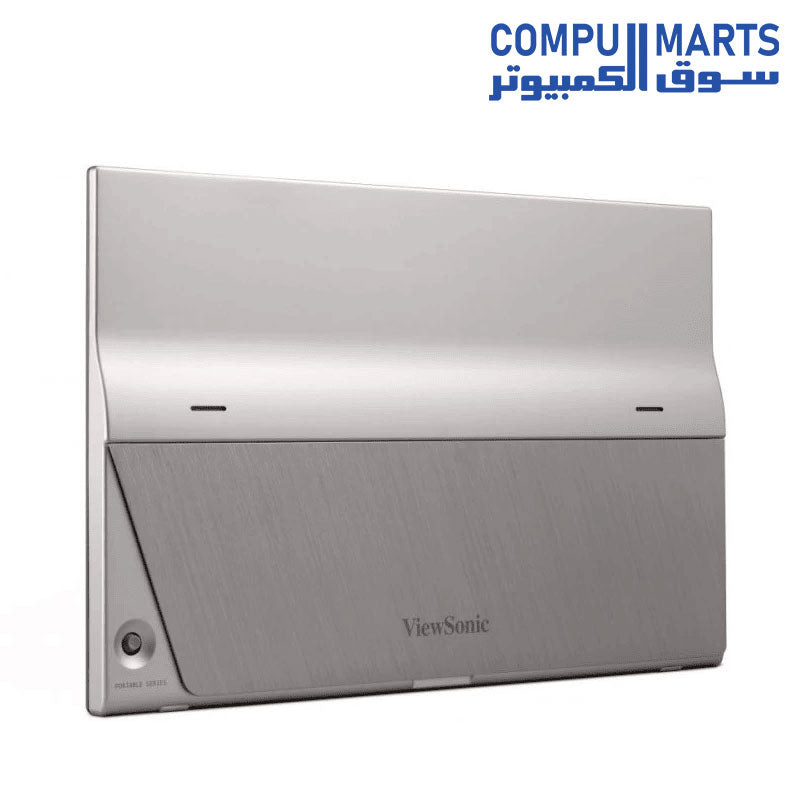

A robust metal case with detachable magnetic cover protects the monitor from damage during transport and prevents sliding on slippery surfaces.

Magnetic Anti-slip Cover

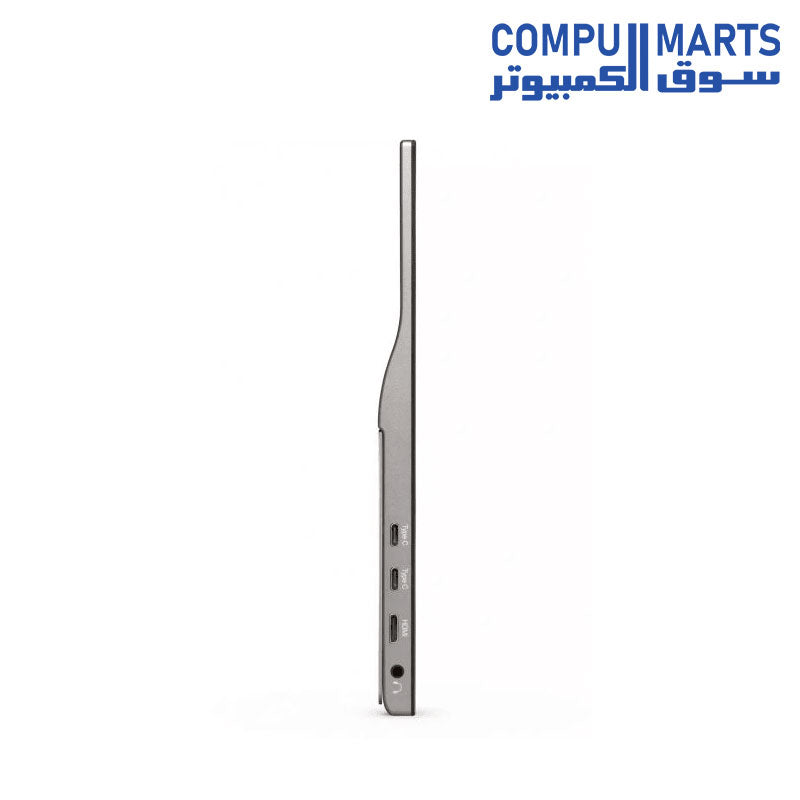

Dimensions & I/O Ports

Display

Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 262K
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.599ms
Response Time (Typical Tr+Tf): 30ms
Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
Cover Glass Thickness: 0.8mm

Compatibility

PC Resolution (max): 1920x1080
Mac Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac Resolution (min): 1920x1080

Connector

USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (with video & data)

Audio

Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor

Controls

Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

Input Signal
